Passive fire protection vs. active fire sprinkler

What Is Active Versus Passive Fire Protection?

Active versus Passive Fire Protection are two critical approaches used to reduce the risk of fire and mitigate its damage in buildings. When discussing your building’s fire protection system, it’s…
Read more
intumescent paint for fire rated wall assemblies

What Are Fire Rated Wall Assemblies?

Fire Rated Wall Assemblies are one of the most crucial components of a building’s fire safety systems that lies within its walls. Fire wall assemblies serve as a passive protection…
Read more

The Significance of Steel Fireproofing

Steel fireproofing is an essential element in order to protect against the potential risk of fire. It is a method of safeguarding a building and its occupants and can be…
Read more

What Are The Main Types Of Fire Suppression Systems?

There are six main types of fire suppression systems that are installed based on the nature of the industry.

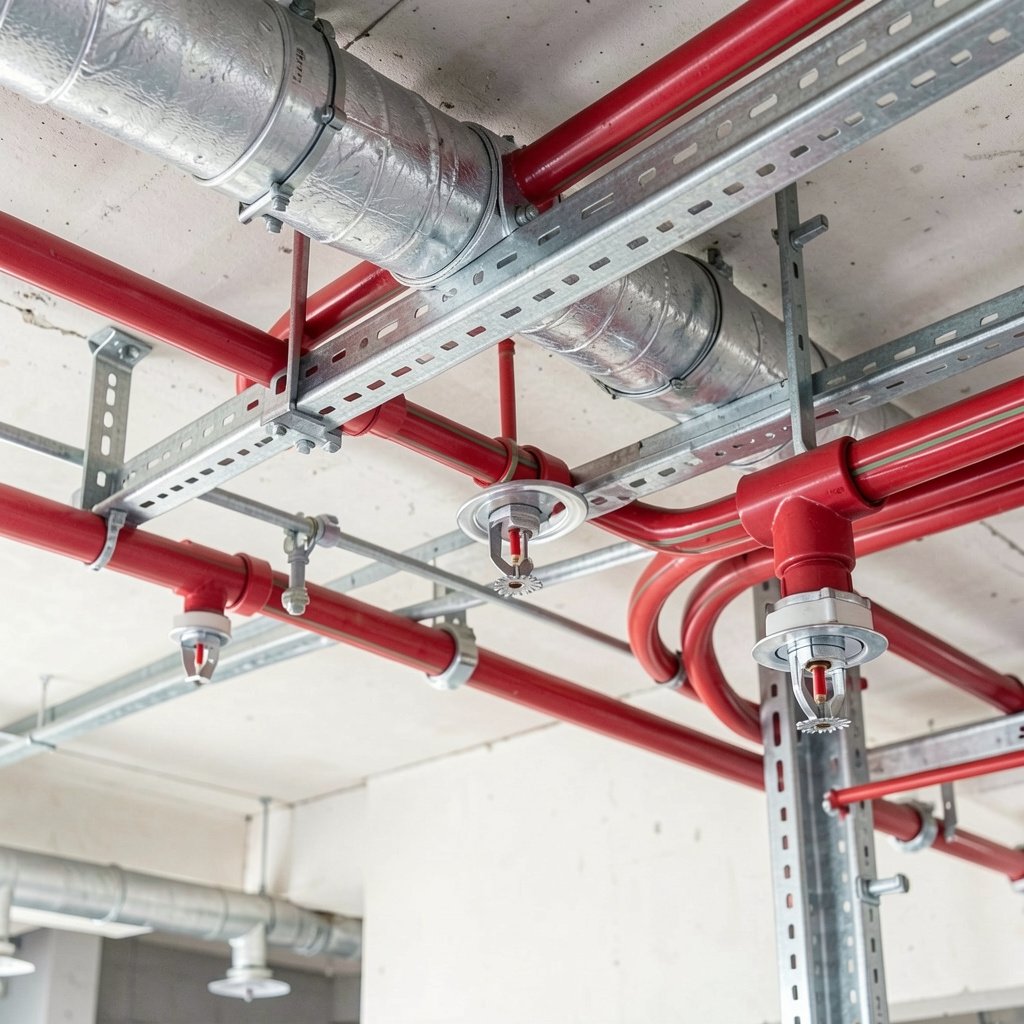

1. The Wet Fire Sprinkler System

wet pipe sprinkler system

Wet sprinkler fire suppression systems are an effective way of preventing and controlling fire hazards and providing safety to residential, commercial, and industrial dwellings. It utilizes a network of pipes that are filled with water and are connected to a reliable water source. These pipes are equipped with special sprinkler heads which are designed to detect a rise in temperature and activate automatically to spray water over the affected area. This helps to reduce the burning of combustible materials and minimize the spread of flames, thereby limiting the damage caused by a fire.

A wet sprinkler system is composed of sprinklers linked to a piping system that is connected to a water source. Upon activation, the sprinklers discharge the water, but only from those that have been set off by the heat of the fire.

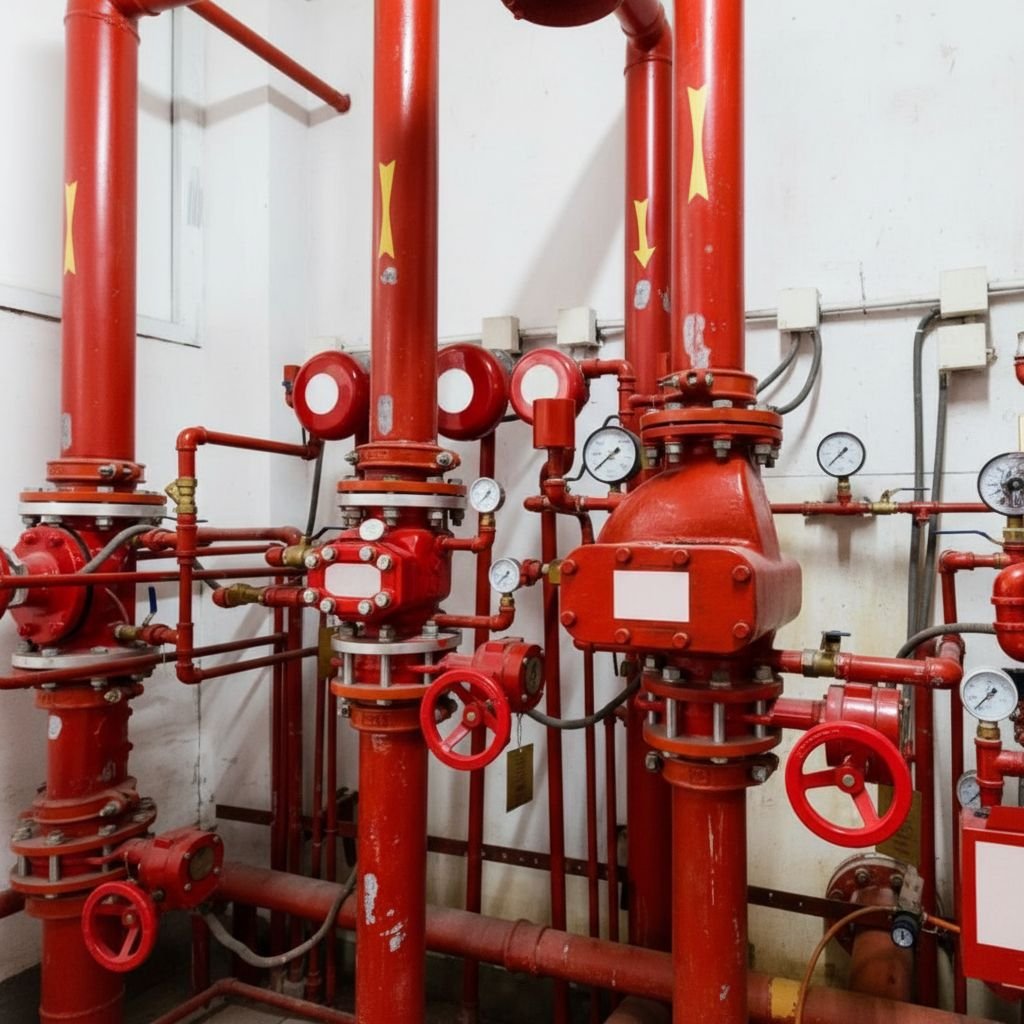

2. The Dry-Pipe Sprinkler System

This particular type of sprinkler system is a system with pipes that are filled with compressed air or nitrogen instead of water. This type of system is commonly installed in areas that have freezing temperatures, where the piping could be susceptible to freezing. This type of system is activated by a heat-sensitive element that will allow the air or nitrogen to be released, thus allowing the water to flow through the piping and activate the sprinkler heads.

A dry-pipe sprinkler system utilizes automatic sprinklers connected to a pipe network filled with nitrogen or air under pressure. When the pressure is released, only the sprinklers triggered by the heat will disperse water from the piping system.

3. Special Hazards Fire Protection Systems

In places where regular extinguishing systems are inadequate, special mechanisms are set up to detect and put out fires. Special hazards can be found in a variety of places, including but not limited to: areas with expensive or irreplaceable equipment, unique assets (museums, archives, art galleries, records storage), and any place where the value of the function or revenue outstrips the worth of the equipment.

Examples of such locations are data centers, telecommunications, power generation, manufacturing and testing facilities, machinery spaces, and healthcare facilities. These areas pose a difficult challenge when it comes to fire protection. Ordinary fire alarm and sprinkler systems may not be enough, so special hazard fire protection offers alternative solutions.

4. Dry Chemical Fire Suppression

A dry chemical suppression system is a form of extinguishing fires utilizing a powder-based agent. This method works by interrupting the chemical reaction that fuels the fire, making it impossible for the fire to spread or continue.

A proper detection system can be used with pressured dry chemicals to put out fires before they become visible, thus providing resources with protection from substantial harm.

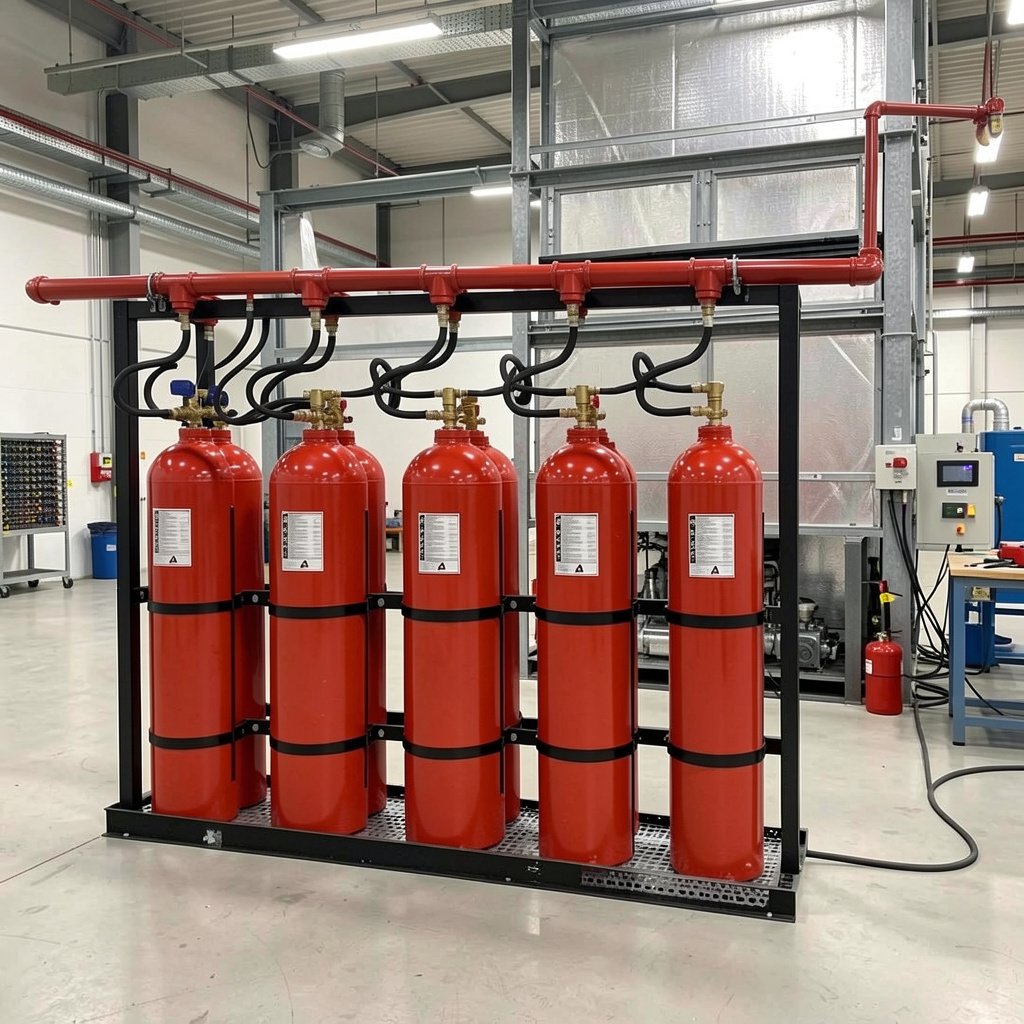

5. Gas-Powered Fire Extinguishers

Gaseous suppression systems can be replaced with gas-powered extinguishers. These systems are designed to reduce the risk of fire by quickly and effectively cutting off the oxygen supply to the burning area. They are cost-effective, easy to install and maintain, and provide an effective and reliable method of protection.

A non-flammable gas, carbon dioxide, is widely used as an extinguisher in places where there are no people present. CO2 has the capacity to put out fires without leaving any hazardous residue behind.

6. Foam-Based Fire Suppression Systems

Evidence has demonstrated that foam suppression systems can quickly put out fires that involve flammable liquids.

A foam suppression system is an efficient and effective method of extinguishing large-scale fires in a short amount of time. It utilizes both water and a foaming agent, which is made up of air-filled bubbles that are less dense than water and consists of foam concentrate, water, and air. The foam separates the fuel from the oxygen and smothers the surface of the fuel to prevent reignition via flammable vapors.

The foam and water are mixed in the piping system and the mixture is then discharged through a nozzle. This type of system is commonly used in areas that involve flammable or combustible liquids, such as aircraft hangars, warehouses, marine applications, and processing areas. There are three types of foam: low, medium, and high expansion, which vary in terms of expansion rate. Each offers its own level of protection.

The benefits of foam suppression systems include efficiency and minimal environmental impact, and they are typically more cost effective. However, considerations should be made before installing a foam system, such as access to an extensive water supply and the need for additional drainage for cleanup.
